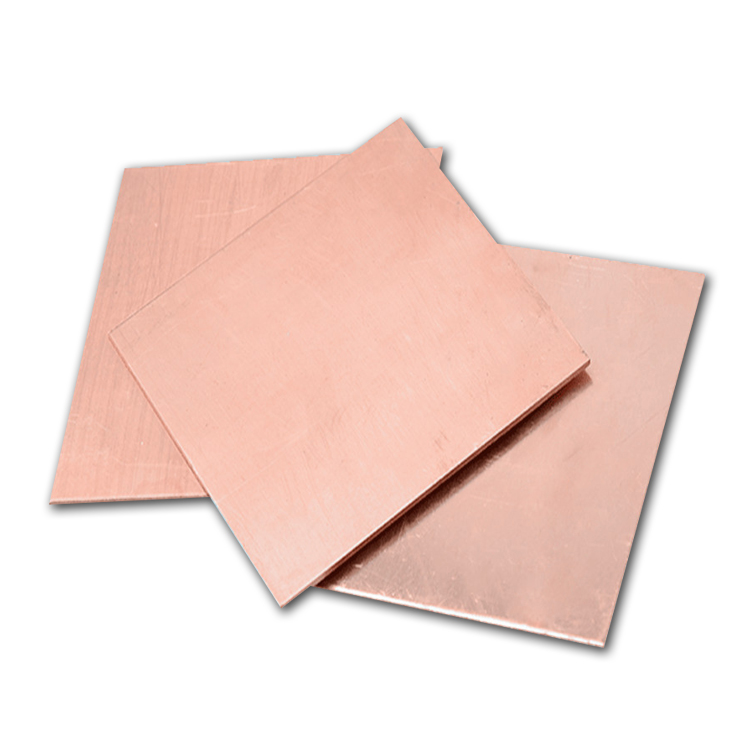

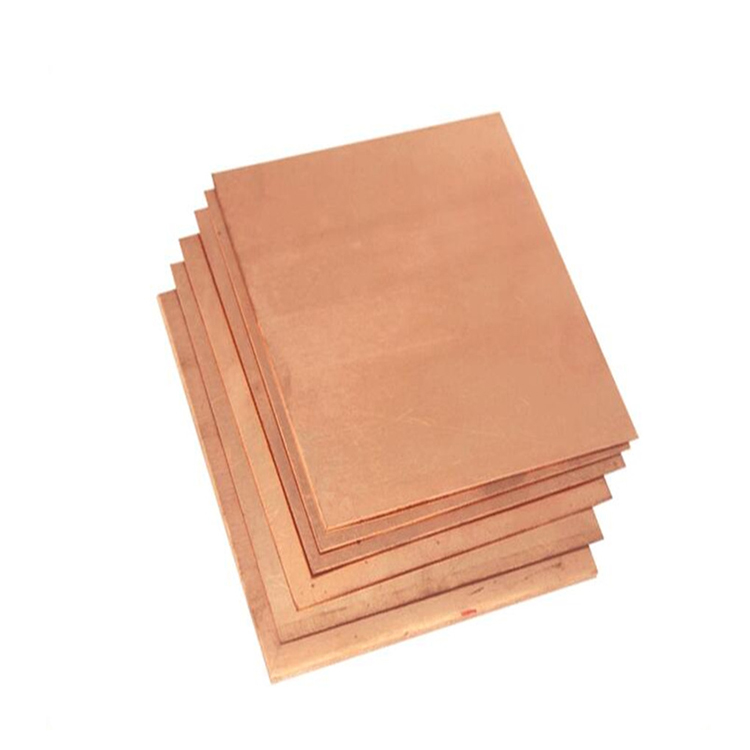

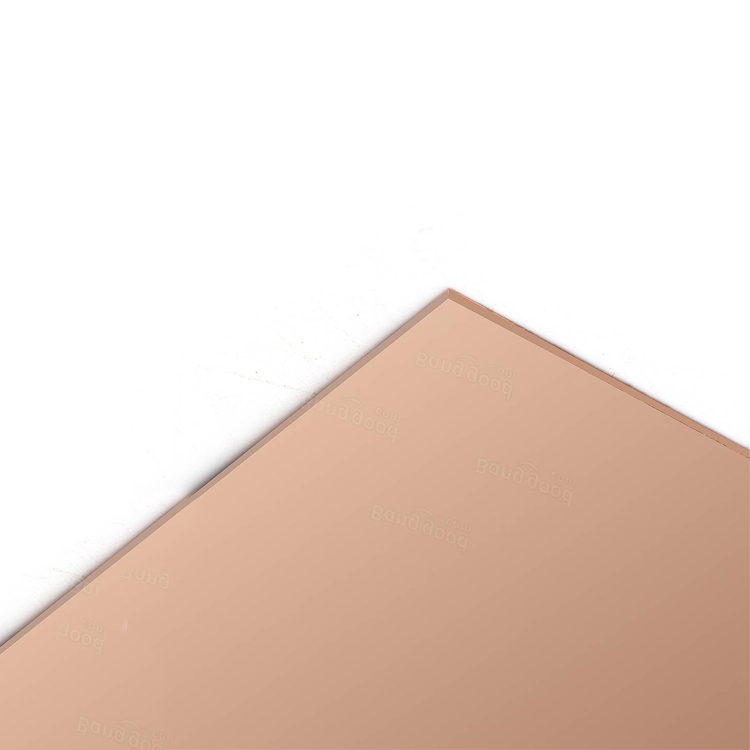

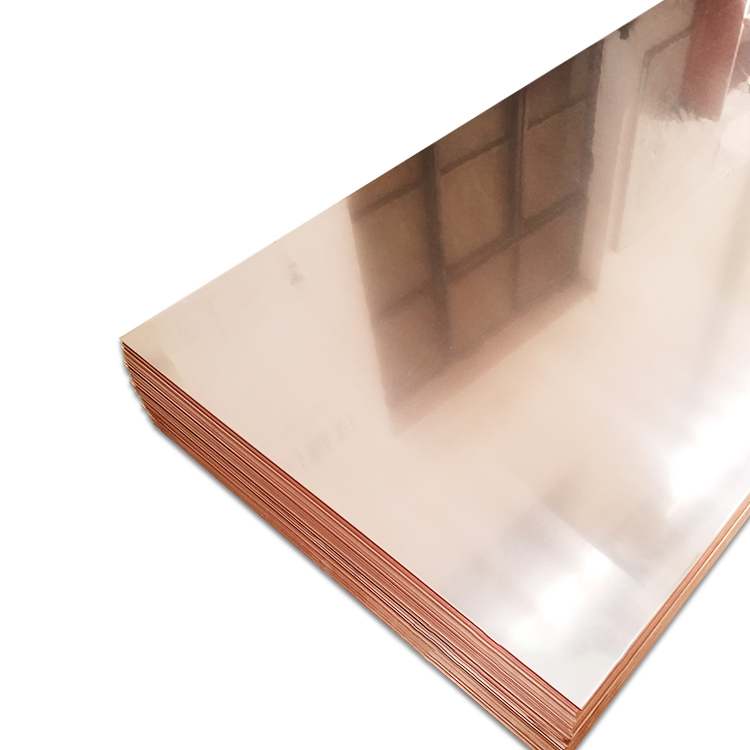

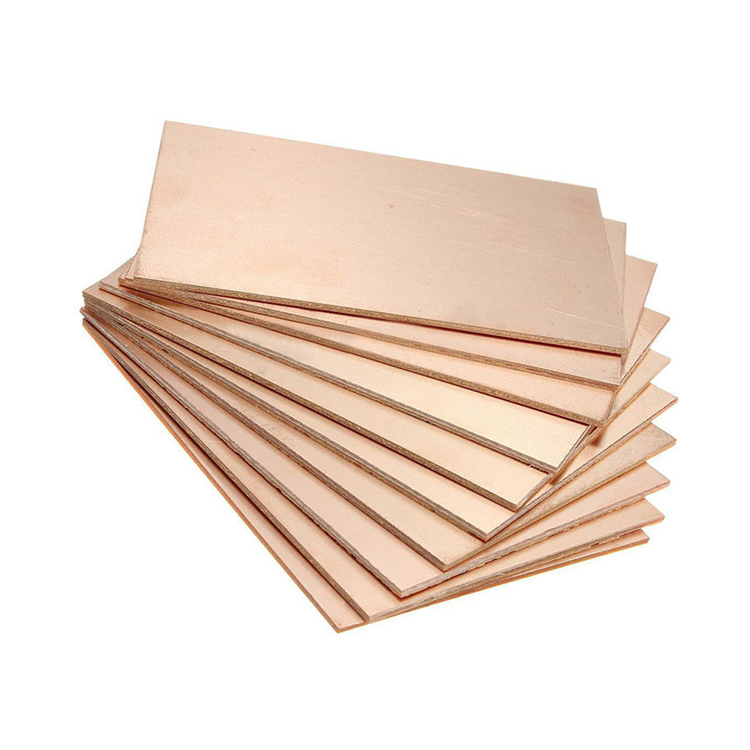

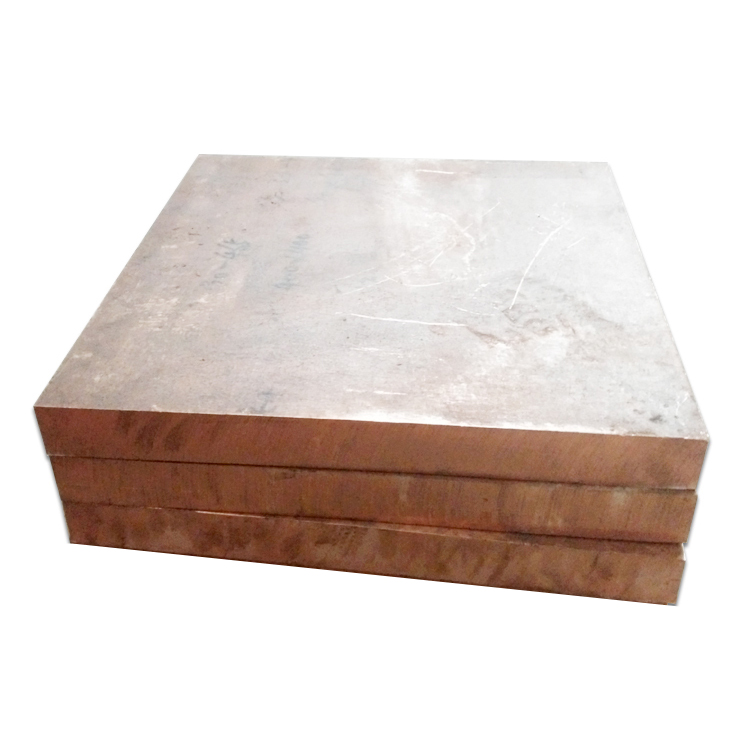

High Quality C10200 Copper Sheet

High Quality C10200 Copper Sheet Featured Image

Short Description:

FOB Price: US $6 / Ton

Supply Ability: 10000 Tons per Month

Port: ShangHai

Payment Terms: L/C,D/A,D/P,T/T

Place of Origin: Shanghai, China (Mainland)

Model Number: C10200

Application: Industrial

Send email to us Download as PDF

Product Detail

Product Tags

Grade	Chemical Composition(%)≥ Microelement(%)≤
Grade	Cu	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
GB	TU2	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003
EN	CU-OF	99.95	-	0.0005	-	-	0.005	-	-	-	-
ASTM	C10200	99.95	-	-	-	-	-	-	0.001
JIS	C1020	≥99.96	-	-	-	-	-	-	-	-

Physical properties
Density (g/cm³)	Modulus of elasticity (GPa)	Thermal expansion coefficient (×10-6/K)		Electrical conductivity (%IACS)		Thermal conductivity (W/(m·K))
8.94	115	17.6		99		391

Mechanical properties
Grade				Thickness (mm)	Temper				Tensile Strength Rm/MPa				Elongation %				Hardness HV
GB	JIS	ASTM	EN	Thickness (mm)	GB	JIS	ASTM	EN	GB	JIS	ASTM	EN	GB	JIS	ASTM	EN	GB	JIS	ASTM	EN
TU2	C1020	C10200	CU-OF	≥0.15	O60	O	H00	R200	≥195	≥195	220-275	200-250	≥30	≥30	-	≥42	≤70	-	-	40-65
					H01	1/4H	H01	R220	215-295	215-285	235-290	220-260	≥25	≥20		≥33	60-95	55-100		40-65
					H02	1/2H	H02	R240	245-345	235-315	255-315	240-300	≥8	≥10		≥8	80-110	75-120		65-95
					-	-	H03	R290	-	-	285-345	290-360	-	-		≥4	-	-		90-110
					H04	H	H04	R290	295-395	≥275	295-360	290-360	≥3	-		≥4	90-120	≥80		90-110
					H06	-	H06	R360	≥350	-	325-385	≥360	-	-		≥2	≥110	-		≥110
					-	-	H08		-	-	345-400		-	-			-	-
					-	-	H10		-	-	≥360		-	-			-	-
