Short Description:

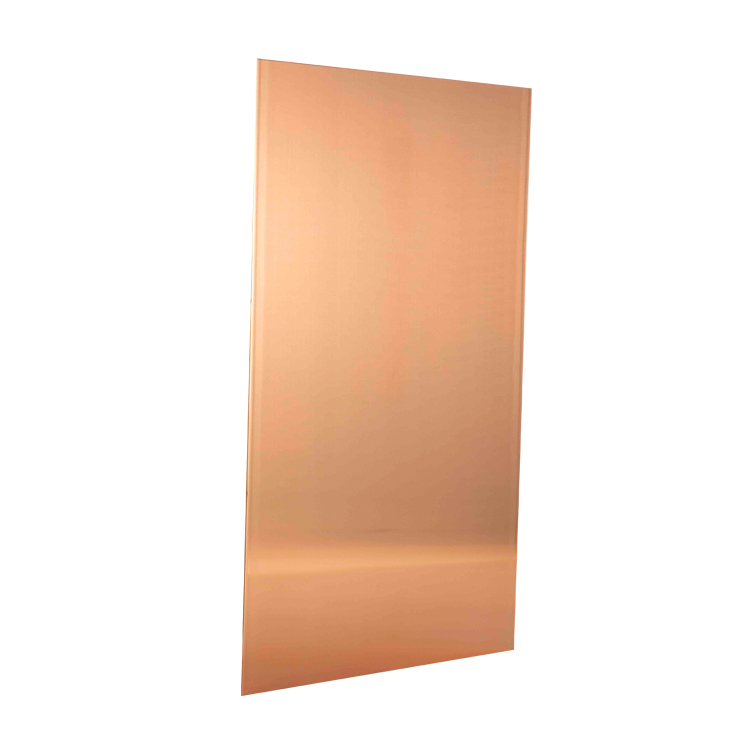

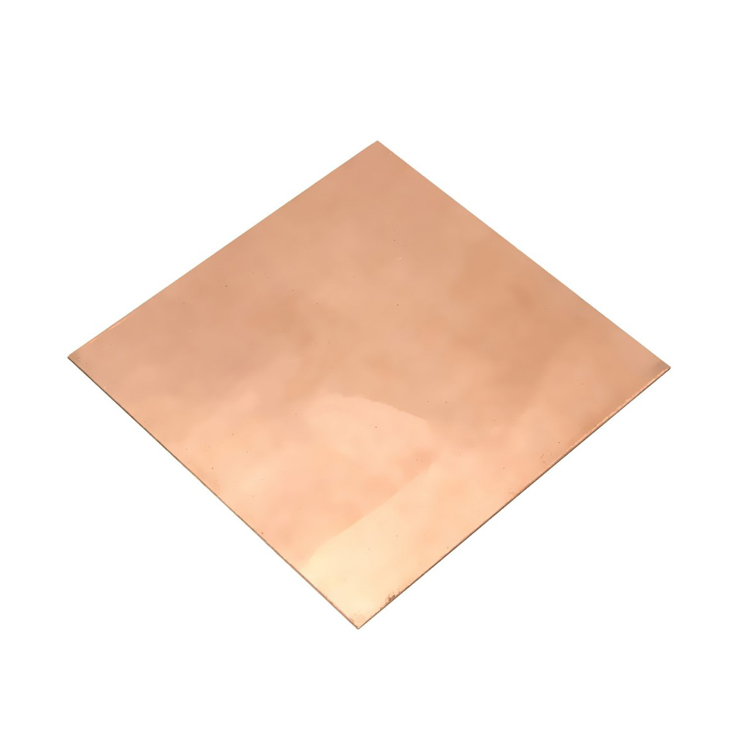

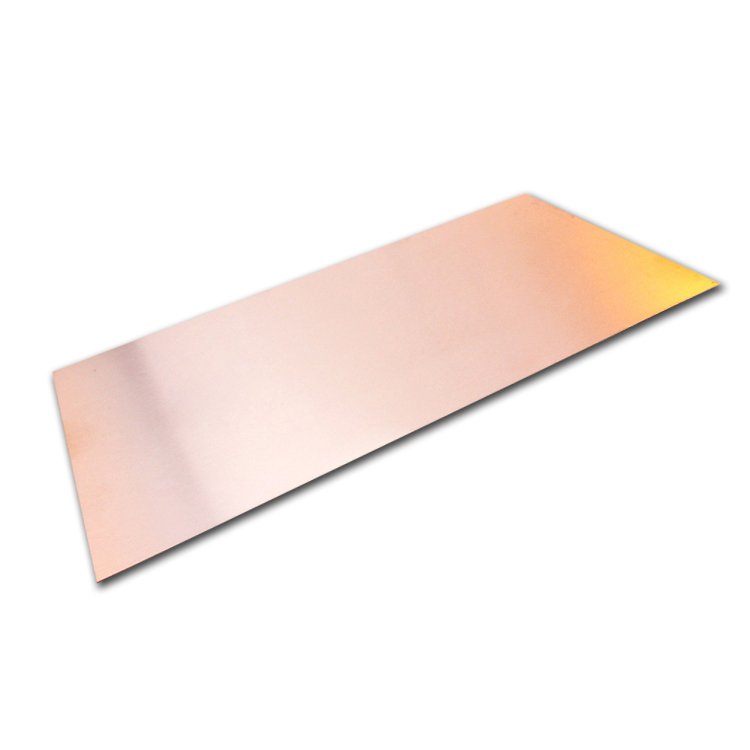

C52400 is a tin phosphorus copper alloy with a tin content of about 10%. It has the characteristics of high elasticity, high strength, corrosion and wear resistance, fatigue resistance, anti magnetism, easy brazing, and good processing performance.
It is widely used in the communication, electrical equipment, instrumentation, and mechanical industries, and is commonly used to manufacture elastic components such as terminal connectors, contactors, contacts, and connectors.
| Standard | Grade | Chemical composition（%） | |||||
| Sn | Zn | Fe | Pb | P | Cu | ||
| ASTM | C52400 | 9.0-11.0 | ＜0.2 | ＜0.1 | ＜0.05 | 0.03-0.35 | Balance |
| JIS | C5240 | 9.0-11.0 | ＜0.2 | ＜0.1 | ＜0.2 | 0.03-0.35 | - |
| Physical properties | |||||||
| Density (g/cm³) |
Modulus of elasticity (GPa) |
Thermal expansion coefficient (×10-6/K) |
Electrical conductivity (%IACS) |
Thermal conductivity W(m·K) |
|||
| 8.86 | 110 | 18.4 | 10 | 50 | |||
| Mechanical properties | Bend properties | ||||||
| Temper | Hardness HV |
Tension test | 90°R/T（Thick≤0.5mm） | ||||
| Tensile Strength Rm/MPa |
Yield Strength MPa |
Elongation % |
Good way | Bad way | |||
| H04 | 200-240 | 650-750 | 510-700 | ≥15 | 0 | 0.5 | |
| H06 | 230-270 | 750-850 | 630-800 | ≥12 | - | 1.5 | |
| H08 | 250-300 | 850-950 | 750-910 | ≥5 | - | 2.5 | |
| H10 | ≥270 | ≥950 | 870-1010 | ≥1 | - | - | |
FAQ
Q: How long is your delivery time?
A: Generally it is within 15 days if the goods are in stock. or it is less than 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample.
Q: What ls your terms of payment?
A.30% T/T in advance ,balance before shipment. And the price depends on the material and the quantity.
If you have another question, please feel free to contact us.
